Fomalhaut Techno Solutions

  Fomalhaut Techno Solutions was established in 1994. Since then its business has expanded from analysis of mobile communications equipment to automotive fields. In recognition of the company's capabilities, it currently has established a loyal customer base.

  Fomalhaut does not do teardown analyses down to the level of chips and circuit boards. Rather, the company excels at activities such as carrying out a general analysis of parts and creating block diagrams. Projection of the function of circuit boards and other components is carried out based on observations of the interior and exterior of electrical devices. These research methods make Fomalhaut comparatively speedy and economical, and it handles an average 10 projects per month including devices unrelated to the automotive industry.

Reports for sale

MarkLines offers the following analysis reports and BOMs for new devices for purchace:

• Telematics control unit for Lexus GS250 from Denso, teardown analysis, 30 pages
  High function TCU including emergency notification capability for luxury Lexus vehicles. Metal housing to deal with noise.
  Report : https://www.marklines.com/statics/teardown/fomalhaut_products_006.pdf
  BOM : https://www.marklines.com/statics/teardown/fomalhaut_products_004.xlsx
• Telematics control unit for Lexus GS350 from Denso, teardown analysis, 30 pages
  Slightly different from the device for the LS250 mentioned above. The report explains the differences.
  Report : https://www.marklines.com/statics/teardown/fomalhaut_products_007.pdf
  BOM : https://www.marklines.com/statics/teardown/fomalhaut_products_005.xlsx
• Audi virtual cockpit unit from Bosch, teardown analysis, 41 pages
  The device is in the position of the meter cluster, and it is possible to insert images of traditional meters, or other images like the navigation system. Full teardown of cluster ass'y, which consists of 5 circuit boards.
  Report : https://www.marklines.com/statics/teardown/fomalhaut_products_009.pdf
  BOM : https://www.marklines.com/statics/teardown/fomalhaut_products_002.xlsx
• TCU for Infiniti from Continental, teardown analysis, 26 pages
  Produced in Mexico and supplied to Infiniti in China. Unlike the Lexus device it has resin housing. Only 1 circuit board in contrast to the Lexus device with 2. Comparison of other differences is also of interest.
  Report : https://www.marklines.com/statics/teardown/fomalhaut_products_010.pdf
  BOM : https://www.marklines.com/statics/teardown/fomalhaut_products_003.xlsx
• TCU for Acura from Johnson Controls Interior, teardown analysis, 31 pages
  TCU for a Japanese luxury brand on par with Lexus and Infinity. Suppliers for each part are different. The 3 companies can be compared in 3 reports. The BOM linage 171 is for the Lexus part, 170 for the Infiniti part, and 181 for the Acura part
  Report : https://www.marklines.com/statics/teardown/fomalhaut_products_008.pdf
  BOM : https://www.marklines.com/statics/teardown/fomalhaut_products_001.xlsx
• Camera for Subaru EyeSight (Ver. 2) from Hitachi Automotive Systems, teardown analysis
  Detailed report and BOM for the camera used in the pioneering ADAS system.
• Onboard system for Subaru EyeSight (Ver. 1) from Hitachi Automotive Systems, teardown analysis
  Eyesight Ver. 1 has also been analyzed. Report and BOM available.
• Rearview mirror ass`y for Lexus from Gentex, teardown analysis
  Analysis of the newest multifunction mirror unit including internal parts.
• HUD for BMW from Nippon Seiki, teardown analysis
  Modern technology can be comprehended by examining this HUD, which is expected to be widely adopted in the future.
• HUD for Lexus from Yazaki Corporation, teardown analysis
  An example of a HUD Japanese automakers have started to adopts.
• Keyless entry system for BMW from Huf, teardown analysis
  A report on a popular keyless system that is an example of analysis of Huf products.
• Portables car navigation system from Panasonic, teardown analysis
  A portable system that works outside of a vehicle when charged that is produced and sold by Panasonic.
• TPMS sensor from Pacific Industrial, teardown analysis
  Analysis of a component from the tire pressure system giant Pacific Industrial.

Our Services

	Specifications A list of component information including use, vehicles that use the parts, and supplier names; as well as visually observed specs.
	Teardown overview General structure can be determined at a glance, and this information also serves as an index for the pages below.
	Block Diagram Fomalhaut utilizes its knowledge to represent the entire structure of parts, including assumptions. All functions are represented in the block diagram, and while the details of circuits are not known, in combination with the teardown photo taken from above mentioned previously, a general idea of the structure of the part can be ascertained.

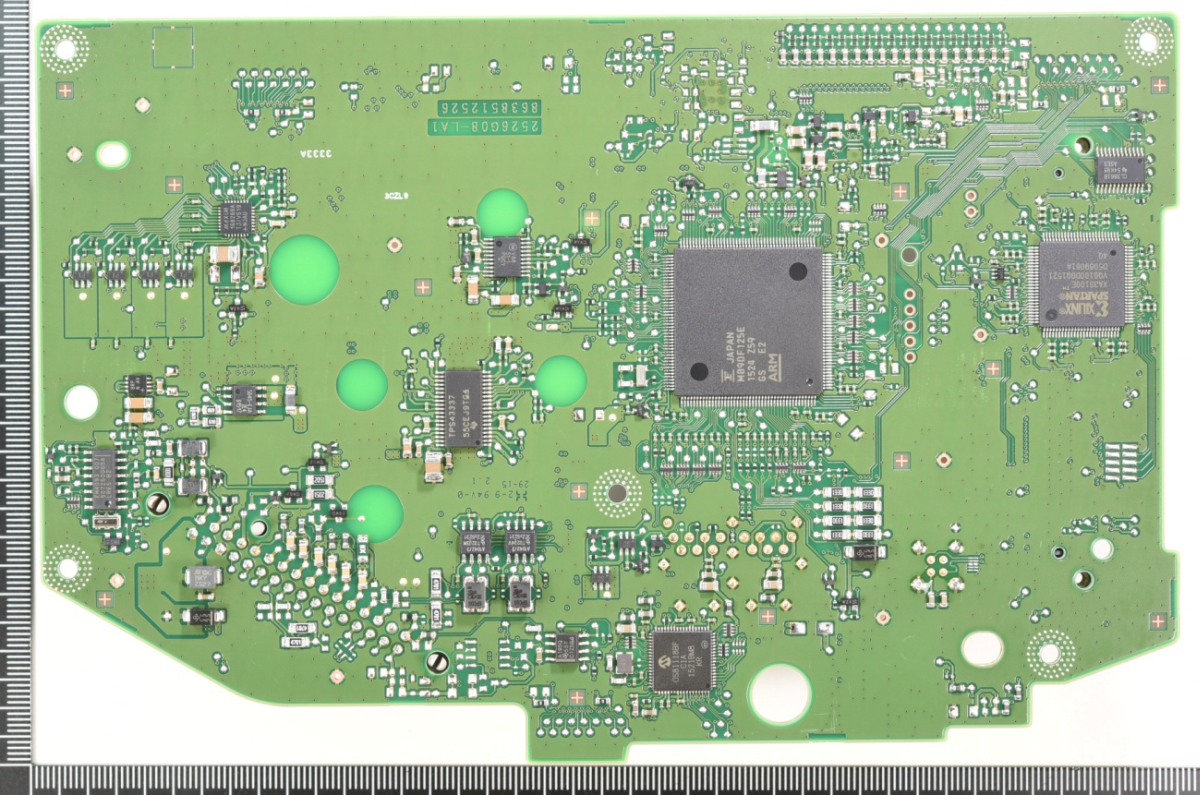

	Observation of circuit boards While each layer is not separated, mounted elements are analyzed and block diagrams verified to create BOMs and costing.

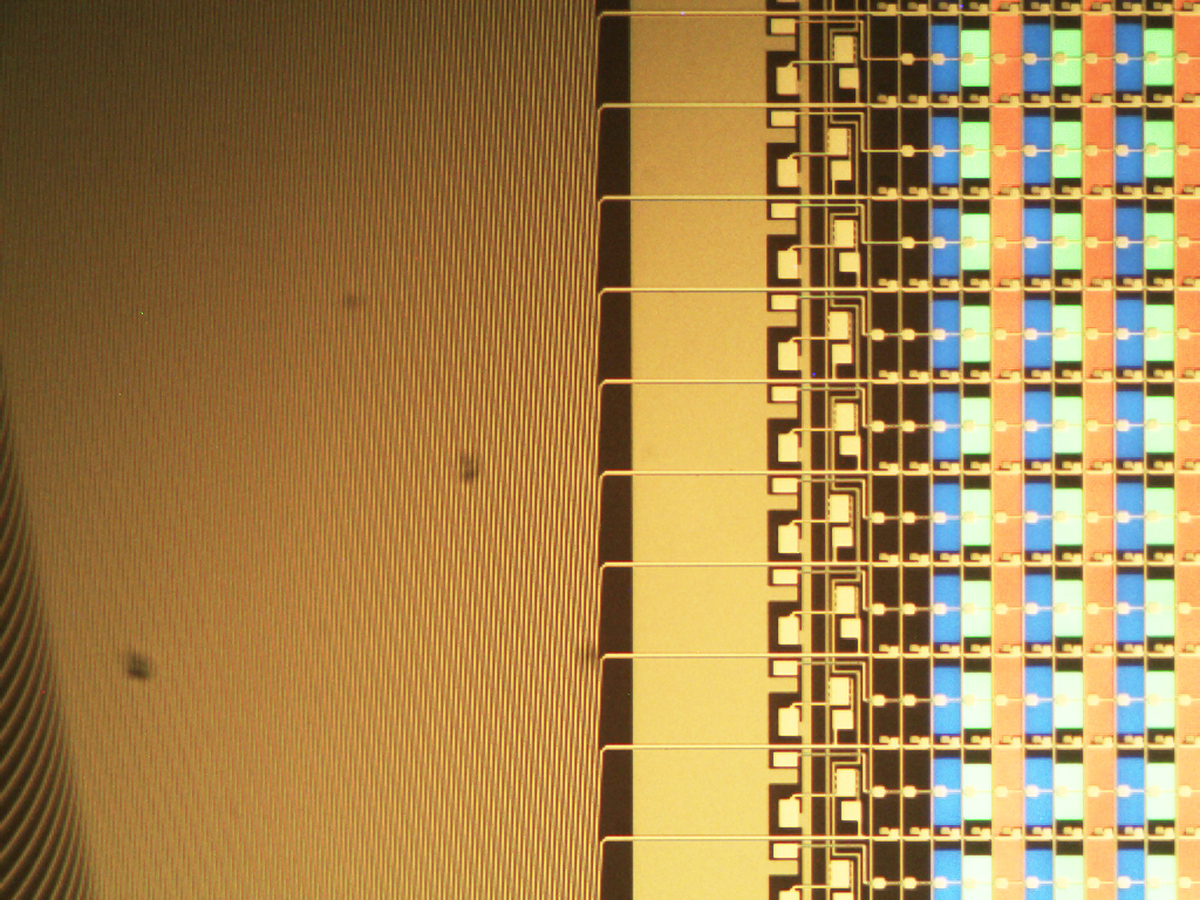

	Microscopic observation Areas to be represented by points are magnified to gain a detailed understanding of the technology. While there is no internal analysis of circuit boards or elements performed, general inferences attained through means like examining the circuits and block diagrams makes this a useful form of analysis.
	BOM A list with a general view of components based on the analysis methods noted previously. Starting from weight, (some components only) components are organized by categories ranging through price.

For further details including content and costs, please contact:

MarkLines Co., Ltd., Consulting Services Department
Person in charge: Mr.Saito
TEL：(03) 4241-3906
e-mail：benchmark@marklines.com
