Archives of Past Exhibits:Usui Kokusai Sangyo Kaisya
2015 IAA Frankfurt Motor Show
2015 JSAE Automotive Engineering Exposition
2014 JSAE Automotive Engineering Exposition in NAGOYA
2014 JSAE Automotive Engineering Exposition
JSAE 2006
-Fuel Cooler
-Due to a thin-type and compact size, this fuel cooler can be installed on a one-ton pickup with a limited space.
-It is installed on the Isuzu "D-MAX" in Thailand and produced locally.
<Line up>
Compact type (Steel and aluminum), Fin-tube type (Steel) and Extended tube type. (ULLT)

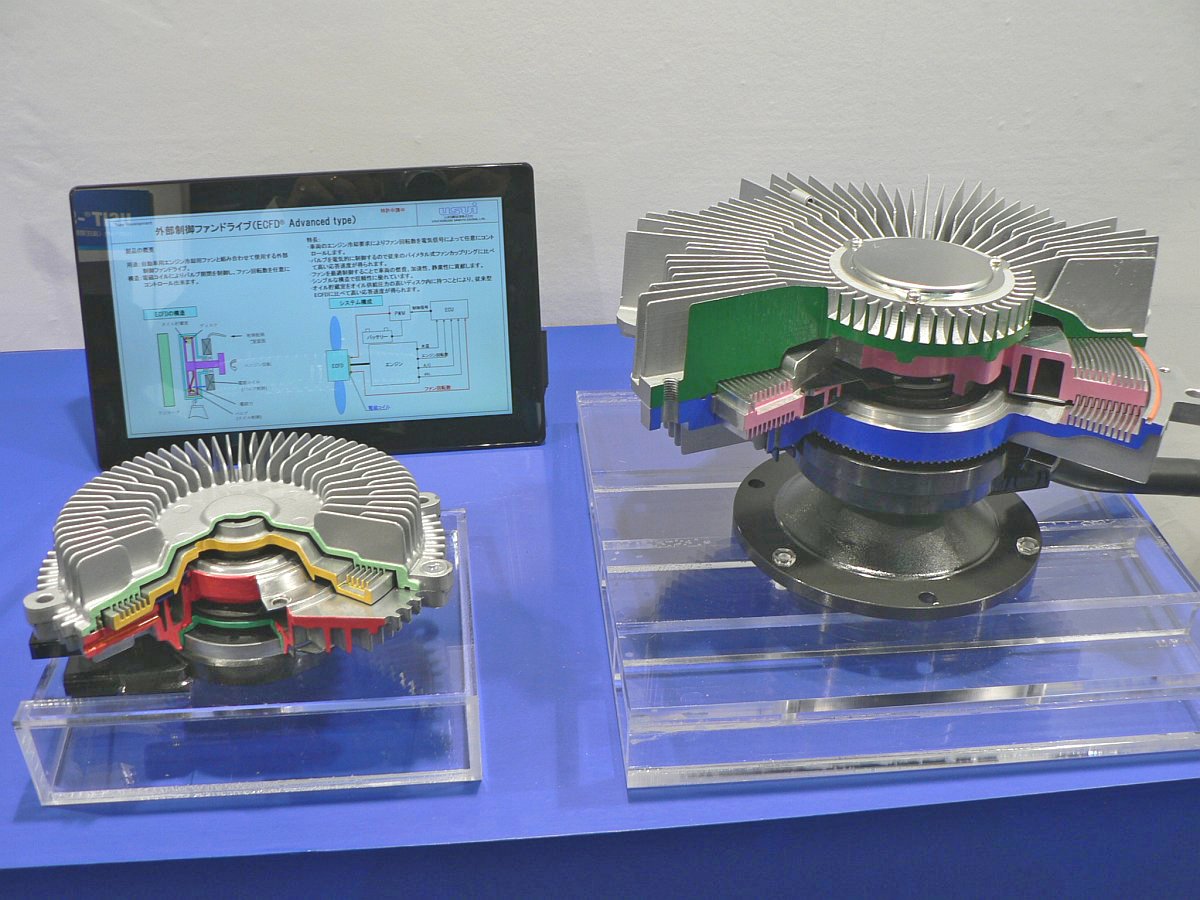

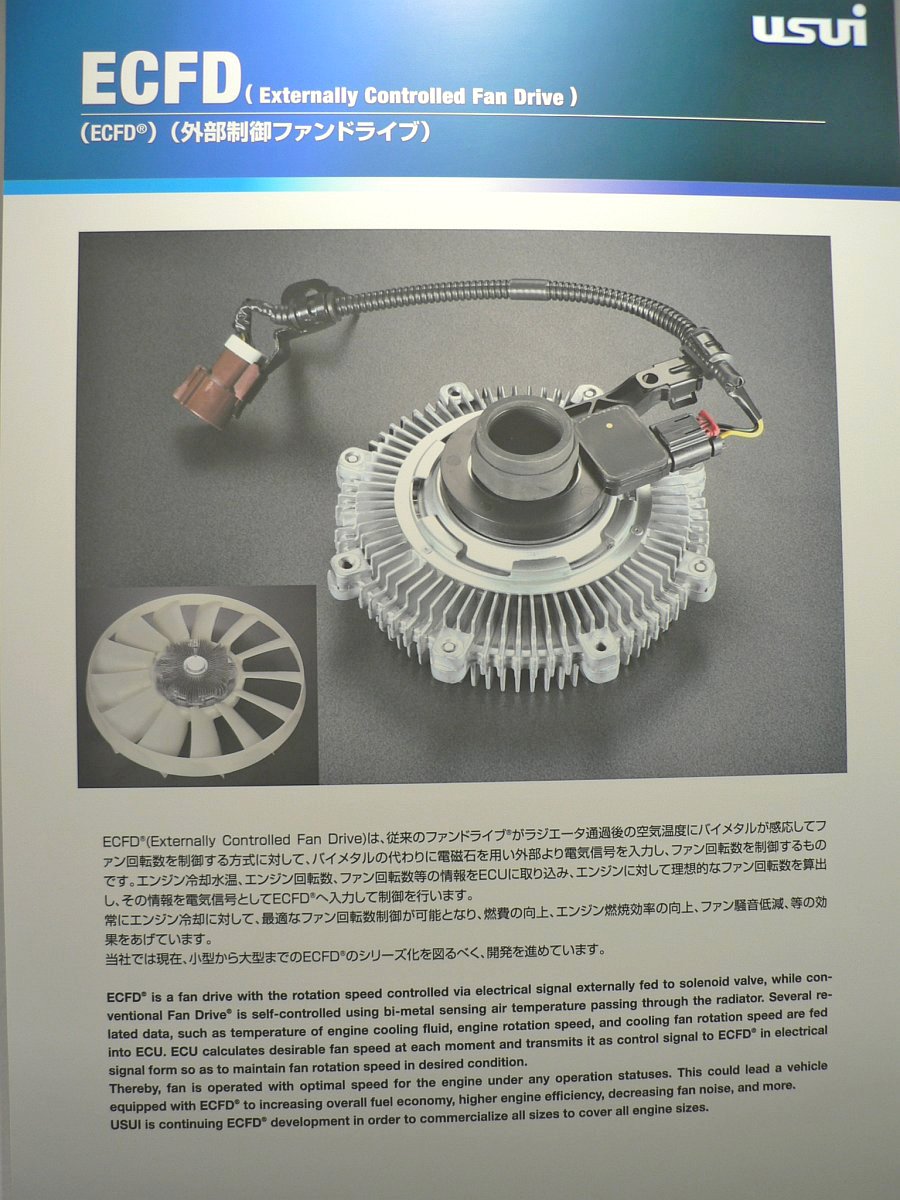

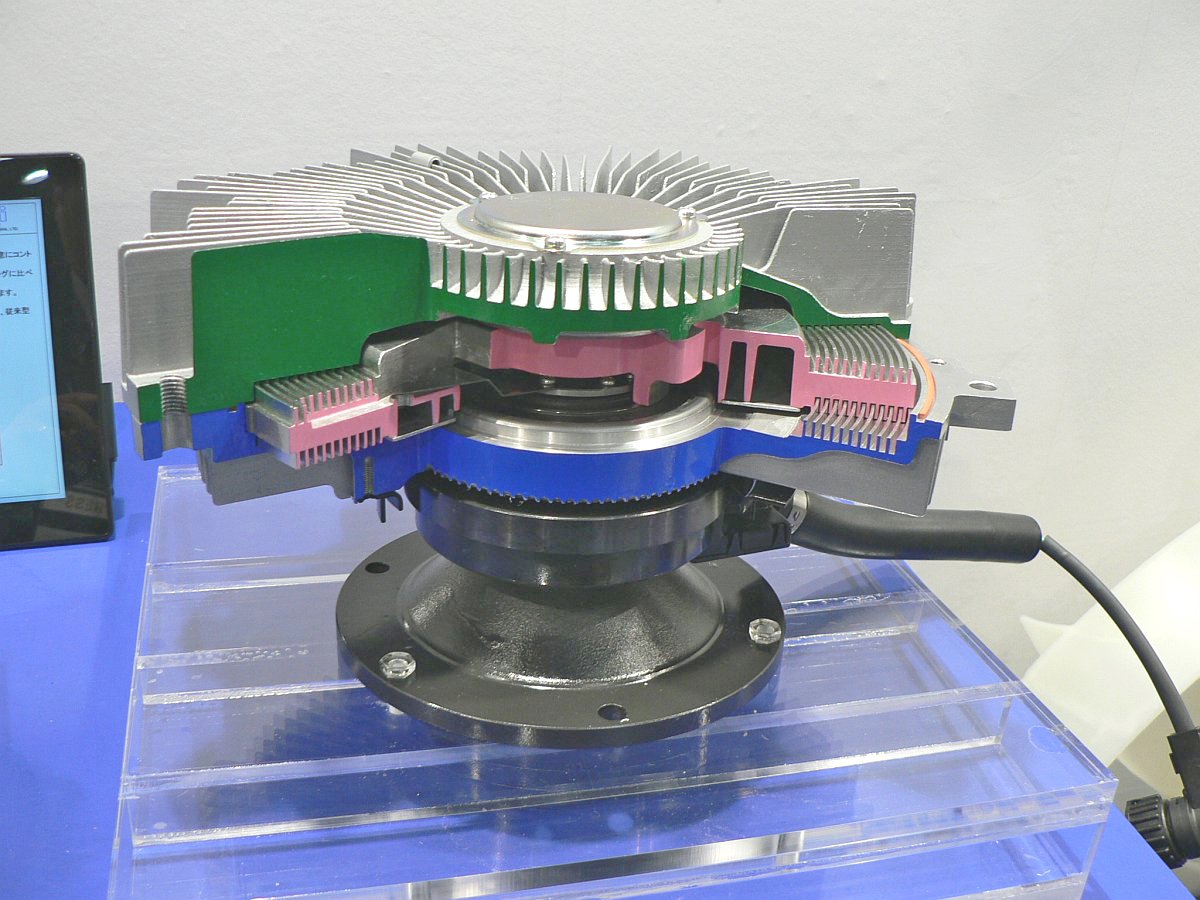

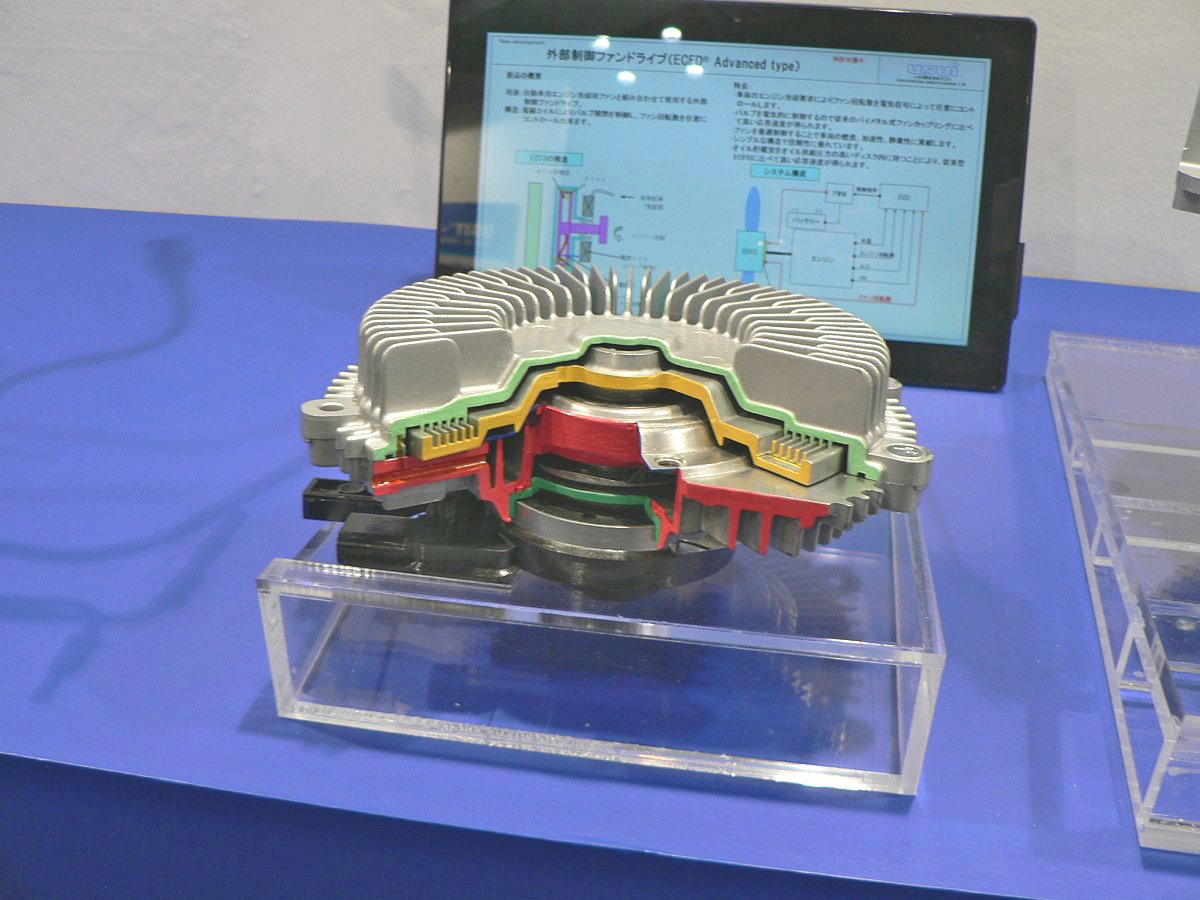

-ECFD: Externally Controlled Fan Drive <Filing for patent>
-A valve is opened or closed by the magnetic coil in accordance with signals from the external control unit (ECU) to control freely the number of a fan rotation.
-Electrical control of a valve can provide a more speedy response than a conventional bimetal coupling,
-Optimal control of a valve improves fuel consumption, acceleration and noise level.
-Delivered to a Ford SUV.

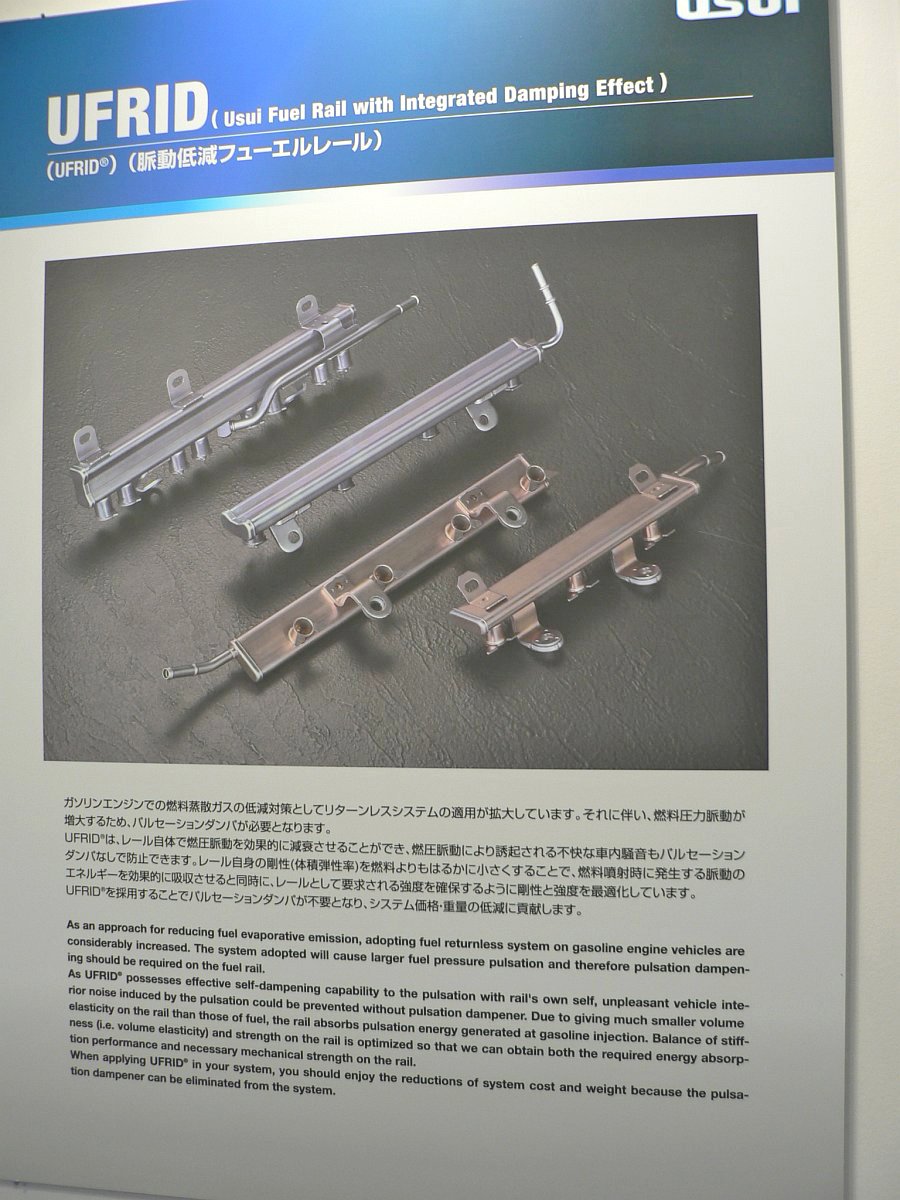

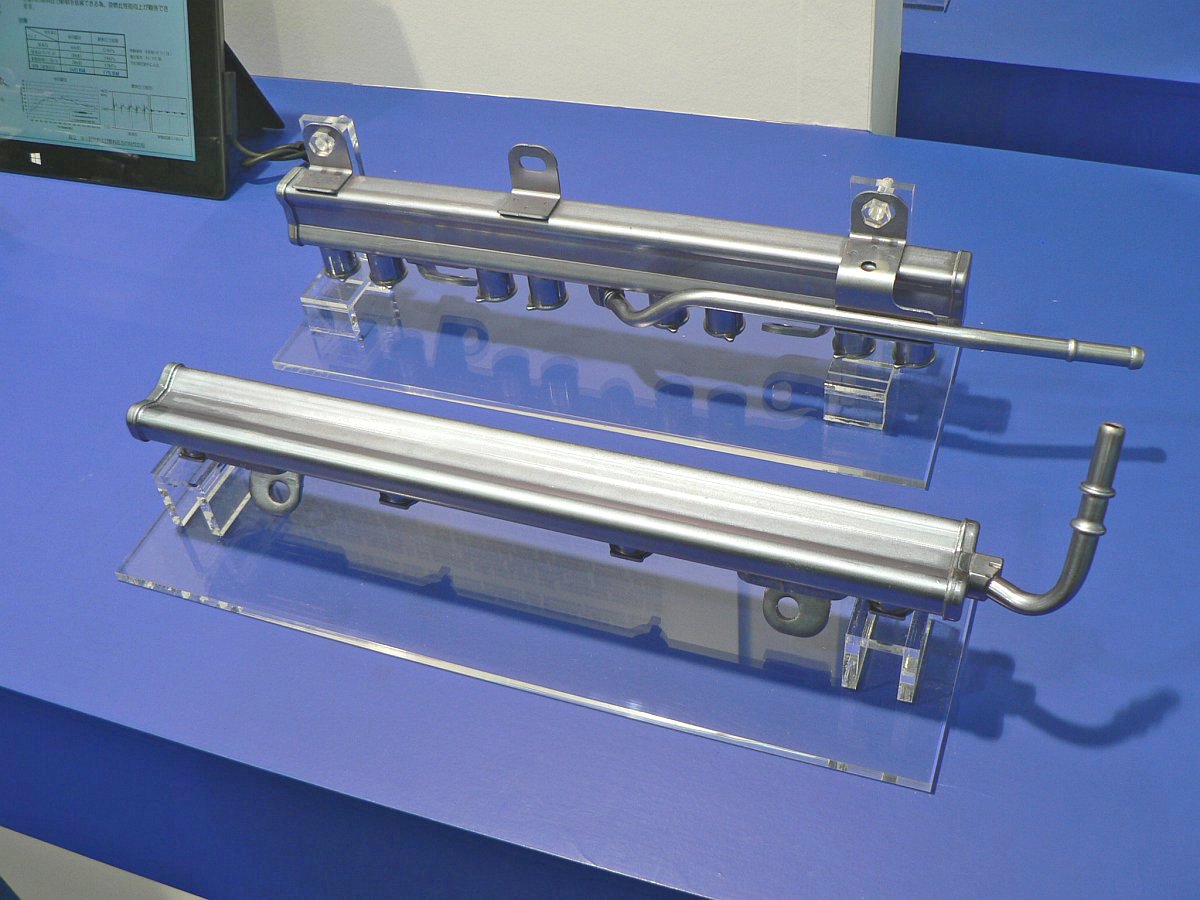

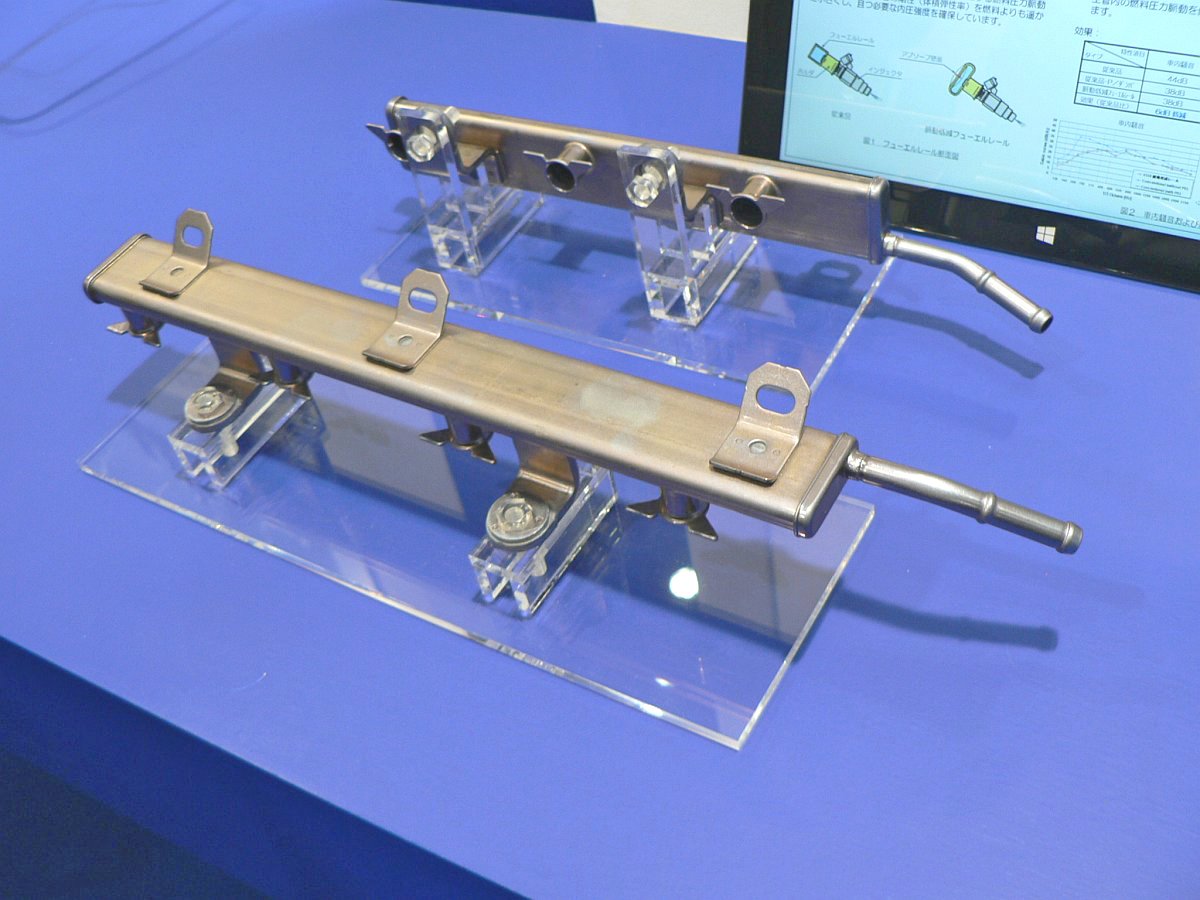

-UFRID: Fuel Rail with Damping Effect <Filing for patent>
<Features>
-Noise reduction in the cabin; Fuel pressure pulsation is reduced and abnormal pulsation noise coming out of fuel tubes can be controlled..
-Cost and weight reduction; Other noise absorbing devices such as pulsation dampers and fuel tube damper clippers can be eliminated.
-Stabilized air-fuel ratio; Improvement in air-fuel performance is expected because fuel pressure pulsation can be reduced in main tubes.
<Effects>
*Test vehicle; 4-cyliner 1,000 cc engine
Test condition; During idling

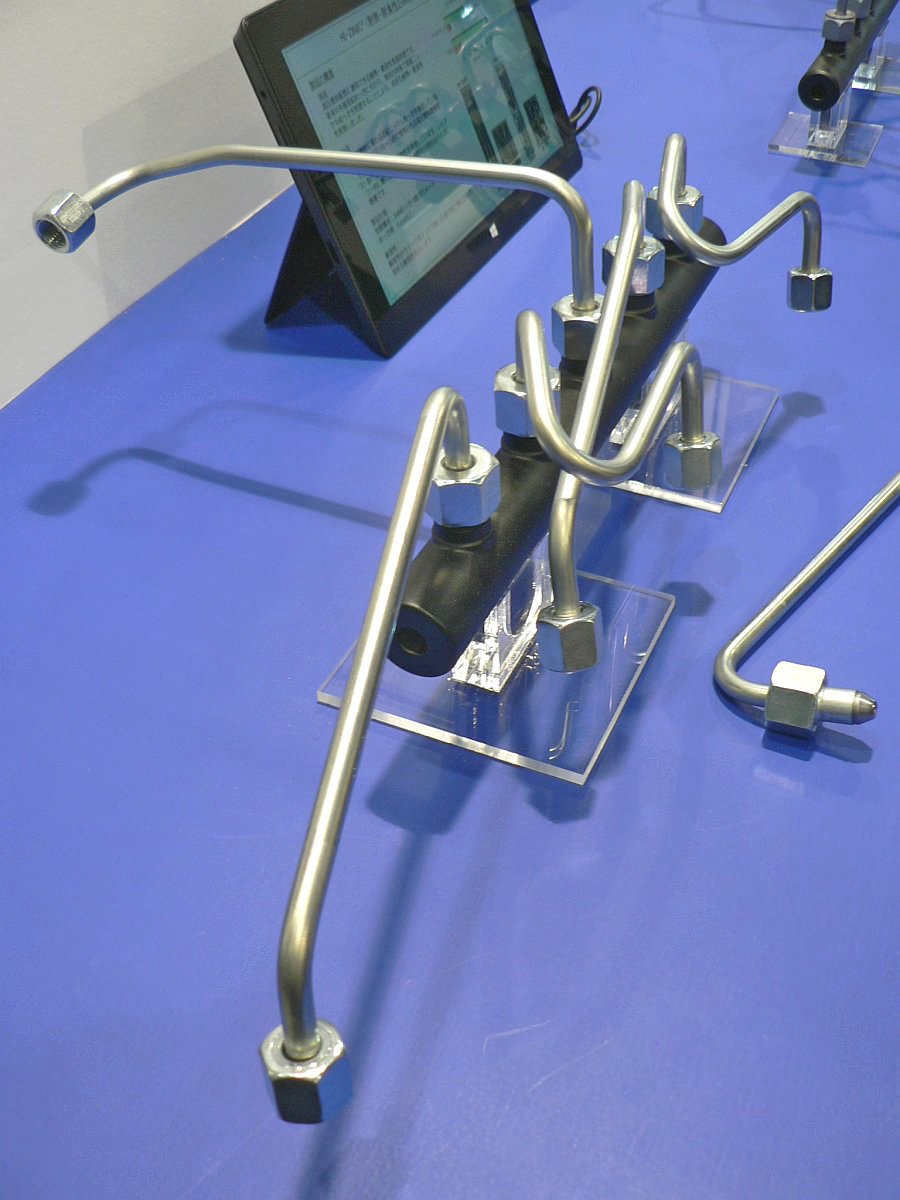

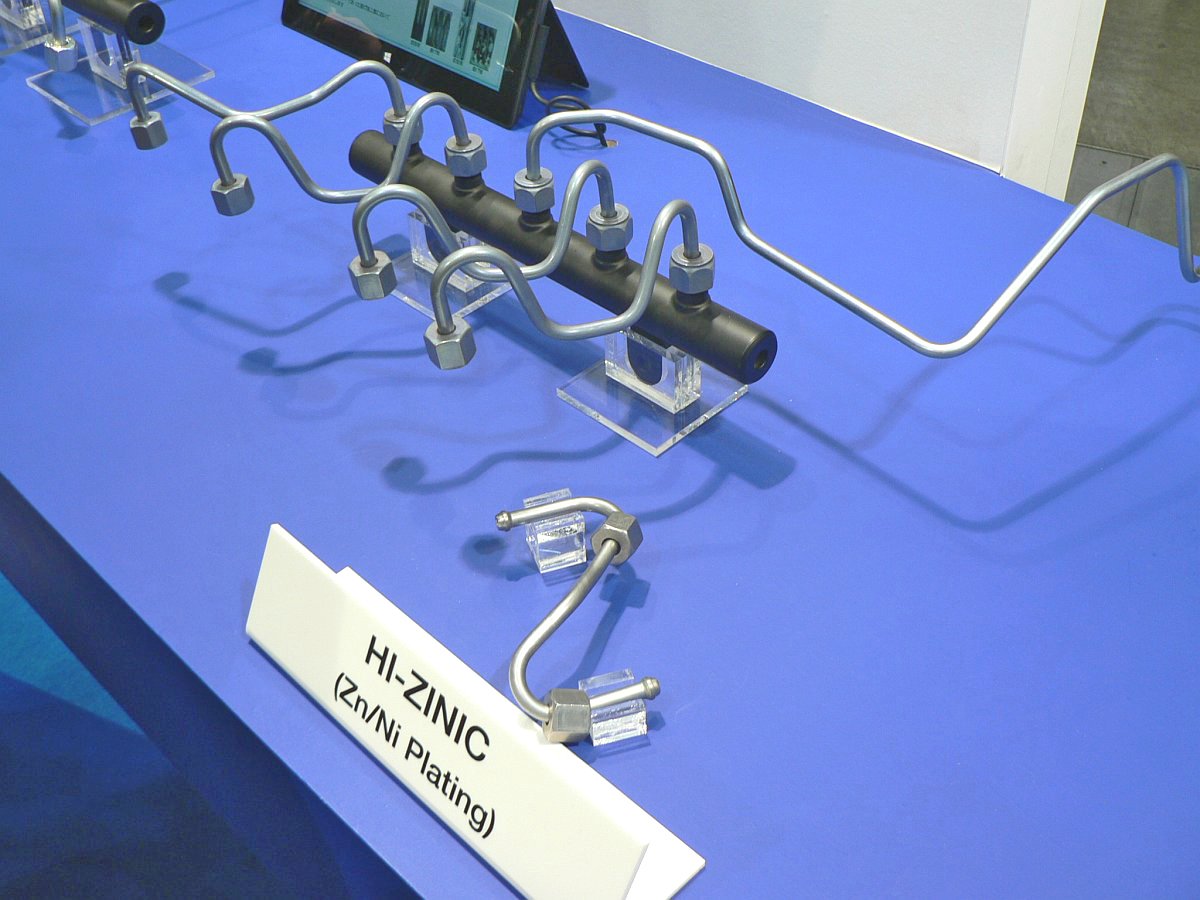

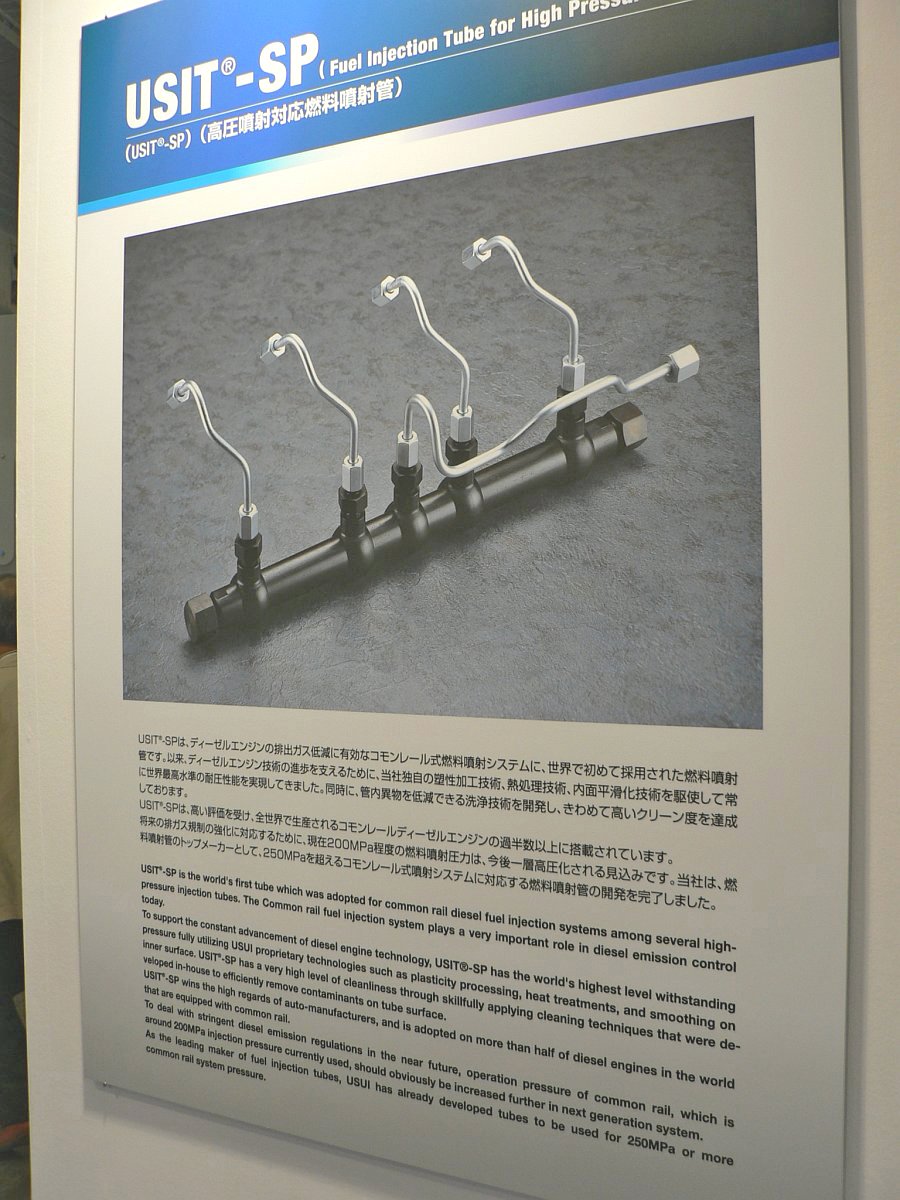

-USIT-SP( High Pressure Fuel Injection Tube <Filing for patent>
-Fuel injection tube suitable for a high pressure diesel engine, especially with a common rail system.
-Single layered steel tube made of high tensile steel equivalent to EN E355.
-Used by major domestic truck manufacturers.
EUSIT-SP VS1A (Designed for inner pressure below 160 MPa):
-This tube has an excellent cleaning performance in the inner pipe surface capable of eliminating a foreign metal particle under 150m.
EUSIT-SP VS1H (Designed for inner pressure of 160MPa and 180MP):
-This tube uses higher tensile steel than the current USIT-SP VS1A, increasing inner pressure fatigue strength.
EUSIT-USP VS1H (Designed for inner pressure 180MPa and,200MPa):
-Application of special treatment to the inner surface has increased inner fatigue strength. (At the preparing stage for production)
-Due to a thin-type and compact size, this fuel cooler can be installed on a one-ton pickup with a limited space.
-It is installed on the Isuzu "D-MAX" in Thailand and produced locally.
<Line up>
Compact type (Steel and aluminum), Fin-tube type (Steel) and Extended tube type. (ULLT)
-ECFD: Externally Controlled Fan Drive <Filing for patent>
-A valve is opened or closed by the magnetic coil in accordance with signals from the external control unit (ECU) to control freely the number of a fan rotation.
-Electrical control of a valve can provide a more speedy response than a conventional bimetal coupling,
-Optimal control of a valve improves fuel consumption, acceleration and noise level.
-Delivered to a Ford SUV.
-UFRID: Fuel Rail with Damping Effect <Filing for patent>
<Features>
-Noise reduction in the cabin; Fuel pressure pulsation is reduced and abnormal pulsation noise coming out of fuel tubes can be controlled..
-Cost and weight reduction; Other noise absorbing devices such as pulsation dampers and fuel tube damper clippers can be eliminated.
-Stabilized air-fuel ratio; Improvement in air-fuel performance is expected because fuel pressure pulsation can be reduced in main tubes.
<Effects>
Types | Noise in the cabin | Fuel pressure variance |
Conventional type | 44dB | 57kPa |
Conventional type with pulsation dampers | 38dB | 14kPa |
New development | 38dB | 13kPa |
Effect in comparison with conventional types | Reduced 6dB | Reduced 77% |
Test condition; During idling
-USIT-SP( High Pressure Fuel Injection Tube <Filing for patent>
-Fuel injection tube suitable for a high pressure diesel engine, especially with a common rail system.
-Single layered steel tube made of high tensile steel equivalent to EN E355.
-Used by major domestic truck manufacturers.
EUSIT-SP VS1A (Designed for inner pressure below 160 MPa):
-This tube has an excellent cleaning performance in the inner pipe surface capable of eliminating a foreign metal particle under 150m.
EUSIT-SP VS1H (Designed for inner pressure of 160MPa and 180MP):
-This tube uses higher tensile steel than the current USIT-SP VS1A, increasing inner pressure fatigue strength.
EUSIT-USP VS1H (Designed for inner pressure 180MPa and,200MPa):
-Application of special treatment to the inner surface has increased inner fatigue strength. (At the preparing stage for production)
Frankfurt Motor Show 2005
<High Pressure Fuel Injection Tube (USIT-SP)>
Features;
-Single layered steel tube, made of high tensile steel, equivalent to DIN, St52
-Inner fissure depth is 10μm or less
-Superior in inner tube cleanness; foreign metal particle (which affect injection system components such as injector) size 150μm or less
Customers;
Ford, Renault, BMW, Toyota, DaimlerChrysler, VW, Audi, Denso, Delphi
Second Generation Products for Common Rail System;
-USIT-SP VS1H(160MPa,180MPa); Further high tension materials, Tensile strength 600MPa
-USIT-USP VS1H(180MPa,200MPa);
<Fuel Rail with Damping Effect (UFRID)>
Features;
-Reduces the fuel pressure pulsation, to prevent the pulsation-induced acoustic noise
-Enables to eliminate other noise suppression parts (pulsation damper, damping clip)
-Enables to reduce the fuel pressure pulsation in the rail itself, thus air-fuel ratio will be improved.
Customers;
Nissan, Mitsubishi, Suzuki (Subaru, GM as customers for next generation products)
<Externally Controlled Fan Drive(ECFD)>
Features;
-Can vary fan speed via electronic control unit to meet vehicle-cooling requirement
-Quick response with electronic control
-Can improve fuel consumption, acceleration, and fan noise, by optimizing fan speed.
-Simple structure, to provide higher reliability and cost/performance
Supplied models;
Ford Explorer, 2006(350,000 units per year) Ford Expedition 2007(1,150,000 units per year)
<Eddy Current Magnetic Fan Drive (EMFD) >
Features;
-Maintenance free as well as high reliability, by utilizing permanent magnets.
-Excellent soft-start with eddy current magnet coupling
-High response speed with electro-magnetic clutch
-Negligible overshoot in engine speed change, to improve fuel consumption, acceleration response, and silence.
-Negligible fan speed at off level, to provide excellent energy-save feature.
Features;
-Single layered steel tube, made of high tensile steel, equivalent to DIN, St52
-Inner fissure depth is 10μm or less
-Superior in inner tube cleanness; foreign metal particle (which affect injection system components such as injector) size 150μm or less
Customers;
Ford, Renault, BMW, Toyota, DaimlerChrysler, VW, Audi, Denso, Delphi
Second Generation Products for Common Rail System;
-USIT-SP VS1H(160MPa,180MPa); Further high tension materials, Tensile strength 600MPa
-USIT-USP VS1H(180MPa,200MPa);
<Fuel Rail with Damping Effect (UFRID)>
Features;
-Reduces the fuel pressure pulsation, to prevent the pulsation-induced acoustic noise
-Enables to eliminate other noise suppression parts (pulsation damper, damping clip)
-Enables to reduce the fuel pressure pulsation in the rail itself, thus air-fuel ratio will be improved.
Customers;
Nissan, Mitsubishi, Suzuki (Subaru, GM as customers for next generation products)
<Externally Controlled Fan Drive(ECFD)>
Features;
-Can vary fan speed via electronic control unit to meet vehicle-cooling requirement
-Quick response with electronic control
-Can improve fuel consumption, acceleration, and fan noise, by optimizing fan speed.
-Simple structure, to provide higher reliability and cost/performance
Supplied models;
Ford Explorer, 2006(350,000 units per year) Ford Expedition 2007(1,150,000 units per year)
<Eddy Current Magnetic Fan Drive (EMFD) >
Features;
-Maintenance free as well as high reliability, by utilizing permanent magnets.
-Excellent soft-start with eddy current magnet coupling
-High response speed with electro-magnetic clutch
-Negligible overshoot in engine speed change, to improve fuel consumption, acceleration response, and silence.
-Negligible fan speed at off level, to provide excellent energy-save feature.
