Shindengen's Power MOSFETs
Outline
”Maximizing energy conversion efficiency for the benefit of humanity and society."
Since our founding in 1949, Shindengen Electric Manufacturing Company’s business has centered on power electronics, which has been represented in our power semiconductors, switching power supplies, and car electronics devices. Over the years, we have developed countless products that meet the expectations and trust of our customers worldwide.
As one of the few manufacturers in the world that combines device technology, circuit technology, and packaging technology, we are developing products such as power semiconductors and DC/DC converters for EV quick chargers, AC chargers, and environmentally friendly vehicles.

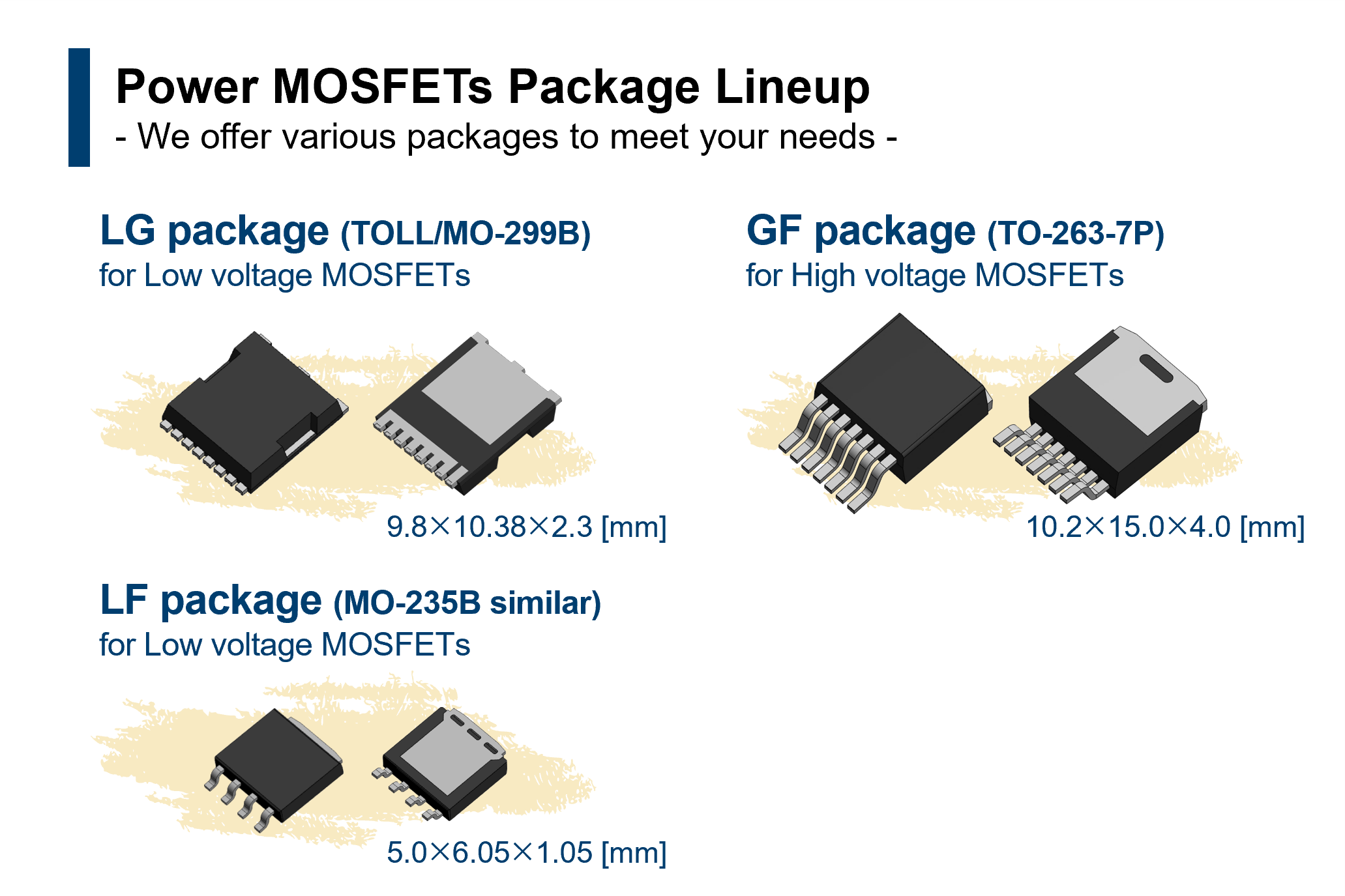

Shindengen Electric Manufacturing Co., Ltd.'s power MOSFET are available in a broad lineup covering everything from low to high withstand voltage. The low withstand voltage series has industry-leading Qg characteristics, and the high withstand series has the industry-leading high breakdown voltage characteristics.
Since our founding in 1949, Shindengen Electric Manufacturing Company’s business has centered on power electronics, which has been represented in our power semiconductors, switching power supplies, and car electronics devices. Over the years, we have developed countless products that meet the expectations and trust of our customers worldwide.
As one of the few manufacturers in the world that combines device technology, circuit technology, and packaging technology, we are developing products such as power semiconductors and DC/DC converters for EV quick chargers, AC chargers, and environmentally friendly vehicles.
Shindengen Electric Manufacturing Co., Ltd.'s power MOSFET are available in a broad lineup covering everything from low to high withstand voltage. The low withstand voltage series has industry-leading Qg characteristics, and the high withstand series has the industry-leading high breakdown voltage characteristics.
Feature

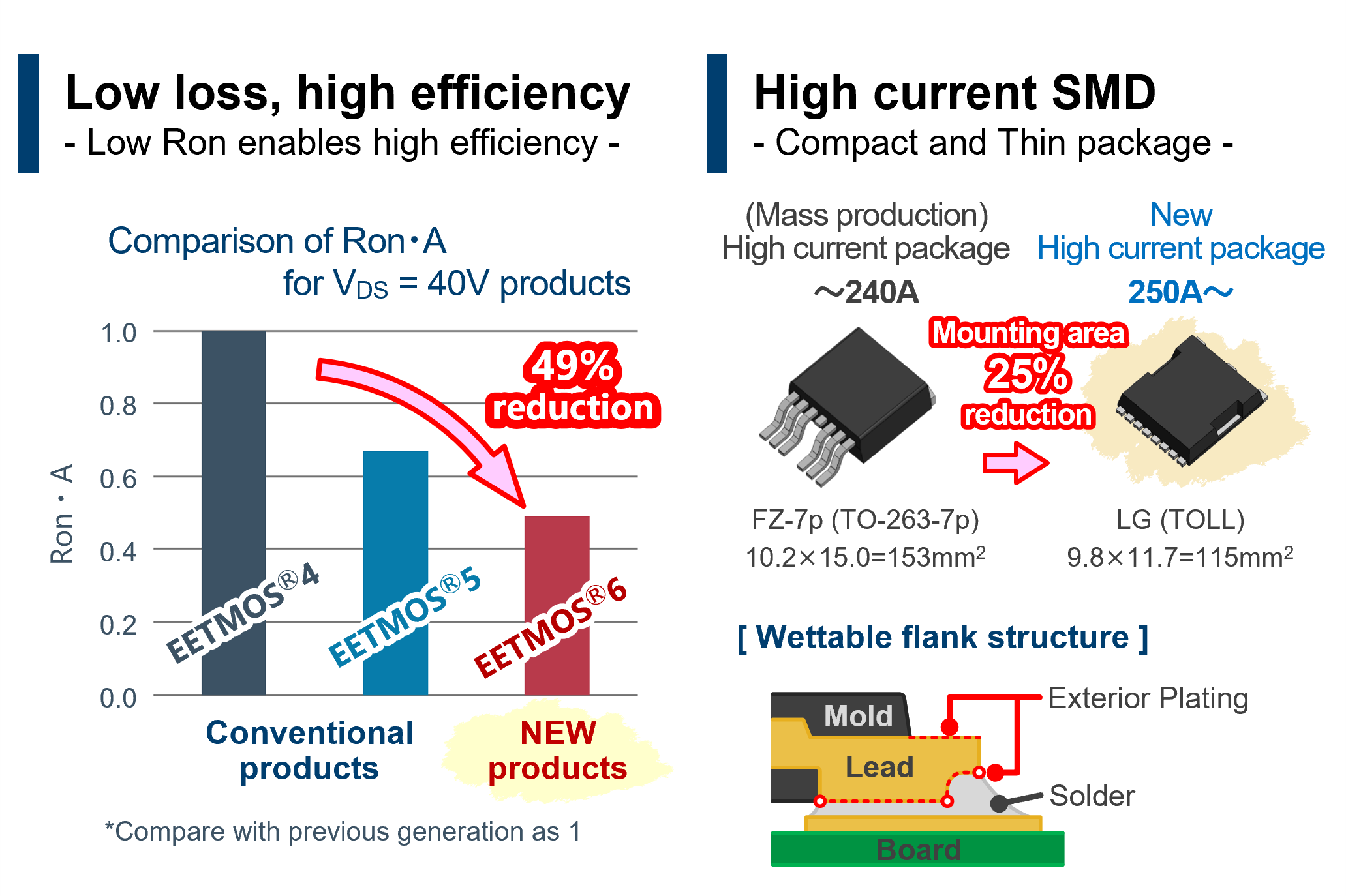

■ Technical Topics 1
- Low voltage EETMOS6 series -
・Achieves low loss and high efficiency through the effect of low Ron
・Improved Crss/Ciss characteristics
・Adoption of Cu clip structure
■ Technical Topics 2
- Compact and Thin package -
・Tch=175°C, Automotive-Compatible Package, Compact and Thin Package
・Approx. 25% smaller mounting area compared to D2PAK (TO-263)
・JEDEC Package Code: MO-299B
・Adopts Wettable Flank for automated visual inspection after mounting
・Kelvin source terminal option available for reduced switching losses

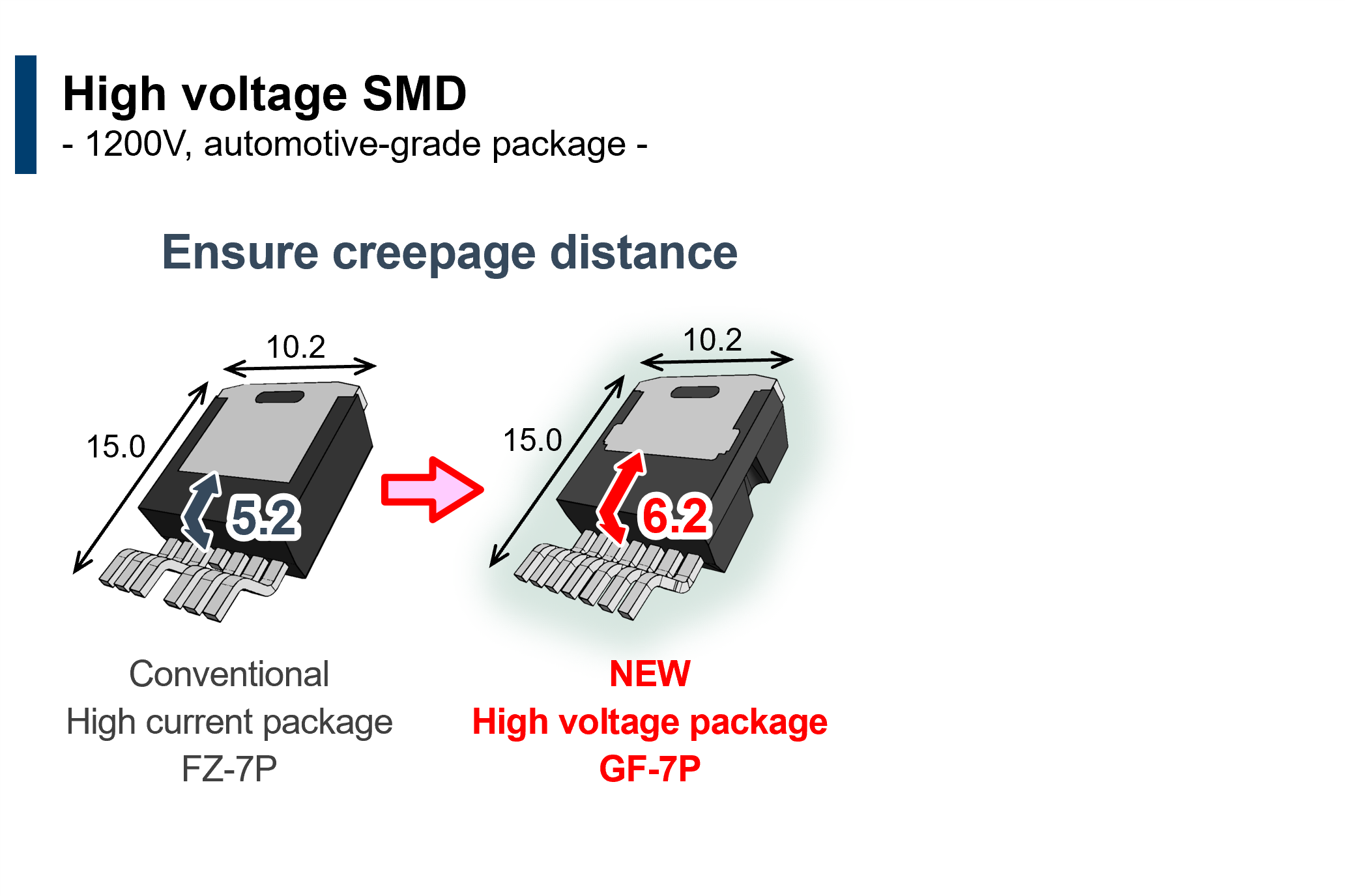

■ Technical Topics 3
- High voltage surface-mount package -
・High-voltage rating of 1200 V, automotive-grade package
・Equipped with Kelvin source terminal
・Compliant with IEC-60664 pollution degree 1 and 2
Product URL
https://www.shindengen.com/products/semi/mos/
Use・Results
■ Low voltage MOSFETs
・EPS
・Water Pump
・Blower motor
・Various ECUs
・Consumer devices
・Industrial equipment, etc.
■ High voltage MOSFETs
・Forced discharge circuits for xEV
・Sub power supplies
・Various protection circuits, etc.
Company information
Company name
SHINDENGEN ELECTRIC MANUFACTURING CO., LTD.
Company URL
Company PR
Since our establishment in 1949, Shindengen has been active in the power electronics sector as a rare type of manufacturer bringing together three core technologies: device technology, circuit technology, and packaging technology. We hold our mission as “maximizing energy conversion efficiency for the benefit of humanity and society.” Under this mission, we continue to protect the environment by maximizing environmental-friendliness with our combined core technologies while we respond to our customer needs.
Japan
+81-3-4241-3907
USA
Mexico
Germany
China (Shanghai)
Thailand
India
