Automotive Digital TV Module (Front-End Model) 【SWAN4S】
Outline
【Overview】

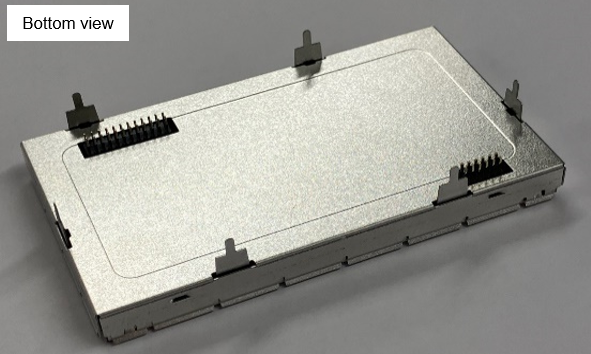

This product is an automotive digital TV tuner module compliant with the ISDB-T standard for terrestrial broadcasts in Japan.
This is a front-end model that outputs received digital TV data to the customer’s main SoC via USB 2.0.
It cannot operate as a standalone digital TV system; however, by combining with the separately provided digital TV software (LAKE), it enables implementation of digital TV functionality in IVI systems.
By leveraging the customer’s existing SoC assets, this solution significantly reduces development workload and enables faster time-to-market.
In addition, the module includes RMP (software-based CAS), eliminating the need for CAS implementation on the customer side.
This product is an automotive digital TV tuner module compliant with the ISDB-T standard for terrestrial broadcasts in Japan.
This is a front-end model that outputs received digital TV data to the customer’s main SoC via USB 2.0.
It cannot operate as a standalone digital TV system; however, by combining with the separately provided digital TV software (LAKE), it enables implementation of digital TV functionality in IVI systems.
By leveraging the customer’s existing SoC assets, this solution significantly reduces development workload and enables faster time-to-market.
In addition, the module includes RMP (software-based CAS), eliminating the need for CAS implementation on the customer side.
Feature
【Product Specifications】
- Dimensions : 81 mm × 46 mm
- Number of connector pins : 12pin, 24pin
- Pin pitch : 1.27 mm
- Input supply voltage : 3.3 V
- Operating temperature range : -40 to 85°C
- RF antenna input : 4 antennas
- External interfaces
・Module RESET pin
・Module power enable pin
・USB 2.0 (MPEG2-TS output ×2, module control)
*Interfaces other than USB can be discussed for customization
【Digital TV Software (LAKE)】*1
As an option, we can also provide Digital TV Software (LAKE), which is required to enable digital TV functionality in your environment.
LAKE supports essential digital TV functions, including channel selection, program information display, and BML features.
While SWAN4S alone cannot provide digital TV functionality, it can be used together with the separately provided Digital TV Software (LAKE) to enable the implementation of digital TV functionality in IVI systems.
【System Requirements】*2
・Supported OS : Linux, Android
・CPU : 2 GHz or higher
・RAM : 1 GB or more
・ROM : 50 MB or more
*1 Digital TV Software (LAKE) is provided as an optional item.
*2 The above requirements assume the full feature set. System requirements can be reduced if certain functions are limited or omitted.

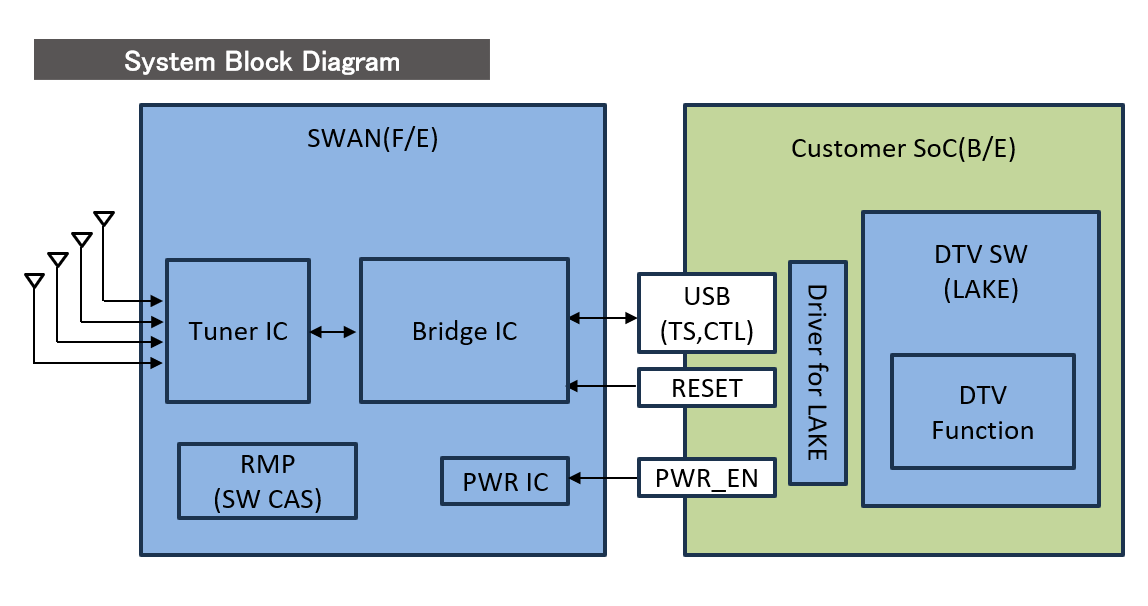

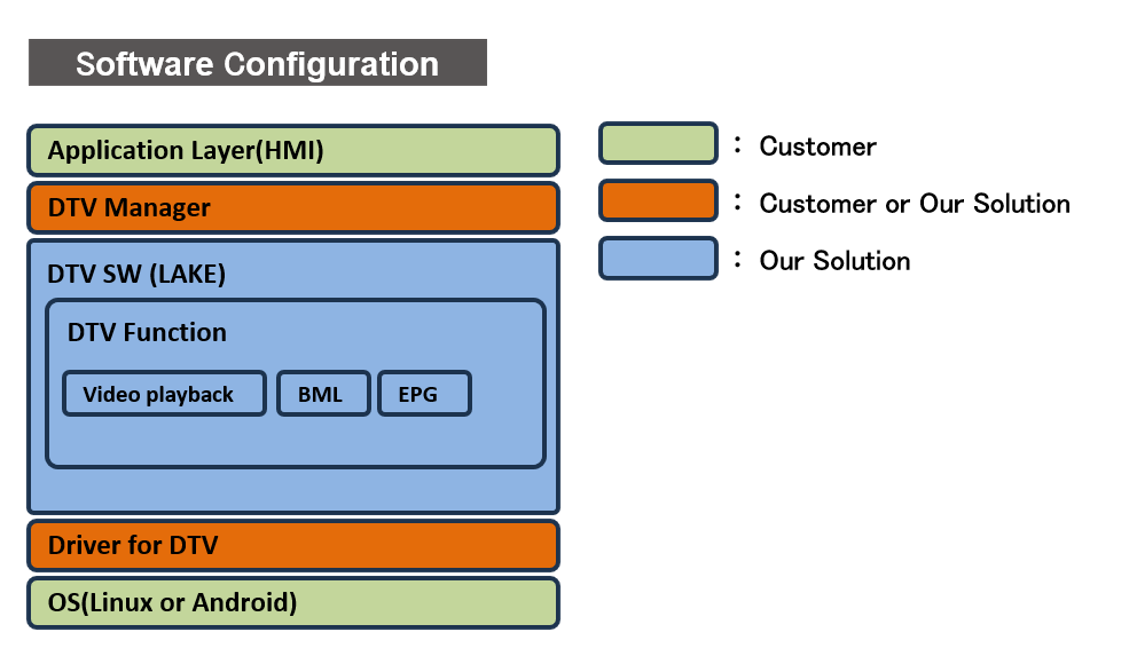

The table below provides an overview of the system block daigram and software configuration.
- Dimensions : 81 mm × 46 mm
- Number of connector pins : 12pin, 24pin
- Pin pitch : 1.27 mm
- Input supply voltage : 3.3 V
- Operating temperature range : -40 to 85°C
- RF antenna input : 4 antennas
- External interfaces
・Module RESET pin
・Module power enable pin
・USB 2.0 (MPEG2-TS output ×2, module control)
*Interfaces other than USB can be discussed for customization
【Digital TV Software (LAKE)】*1
As an option, we can also provide Digital TV Software (LAKE), which is required to enable digital TV functionality in your environment.
LAKE supports essential digital TV functions, including channel selection, program information display, and BML features.
While SWAN4S alone cannot provide digital TV functionality, it can be used together with the separately provided Digital TV Software (LAKE) to enable the implementation of digital TV functionality in IVI systems.
【System Requirements】*2
・Supported OS : Linux, Android
・CPU : 2 GHz or higher
・RAM : 1 GB or more
・ROM : 50 MB or more
*1 Digital TV Software (LAKE) is provided as an optional item.
*2 The above requirements assume the full feature set. System requirements can be reduced if certain functions are limited or omitted.
The table below provides an overview of the system block daigram and software configuration.
Product URL
https://www.oec.okaya.co.jp/solution/auto_sol/auto_product/front-end-module-swan/
Use・Results
【Applications】
A digital TV reception module with built-in RMP (software CAS).
By combining with the separately provided software (LAKE) and integrating into IVI products, digital TV functionality can be implemented.
【Track Record】
Adopted for mass production by domestic automotive OEMs (mass production confirmed).
A digital TV reception module with built-in RMP (software CAS).
By combining with the separately provided software (LAKE) and integrating into IVI products, digital TV functionality can be implemented.
【Track Record】
Adopted for mass production by domestic automotive OEMs (mass production confirmed).
Other
- Custom quotation available depending on quantity and specifications
- Support for system integration and product launch
- On-site demonstration available upon request
For system brock diagram, please refer to the documentation.
Customization requests are also welcome.
- Support for system integration and product launch
- On-site demonstration available upon request
For system brock diagram, please refer to the documentation.
Customization requests are also welcome.
