Automotive Digital TV Module (Complete Model) 【Thrush / Thrush-High】
Outline
【Overview】
This product is an automotive digital TV tuner module compliant with the ISDB-T standard for terrestrial broadcasts in Japan.
The module integrates essential functions for digital TV reception, including tuner, decoding, and video/audio output.
By integrating this module into your IVI system, standalone digital TV functionality can be realized.
It enables significant reduction of development effort and supports faster product development cycles through its integrated hardware and software architecture.
In addition, the module includes RMP (software CAS), eliminating the need for CAS implementation on the customer side.
This product is an automotive digital TV tuner module compliant with the ISDB-T standard for terrestrial broadcasts in Japan.
The module integrates essential functions for digital TV reception, including tuner, decoding, and video/audio output.
By integrating this module into your IVI system, standalone digital TV functionality can be realized.
It enables significant reduction of development effort and supports faster product development cycles through its integrated hardware and software architecture.
In addition, the module includes RMP (software CAS), eliminating the need for CAS implementation on the customer side.

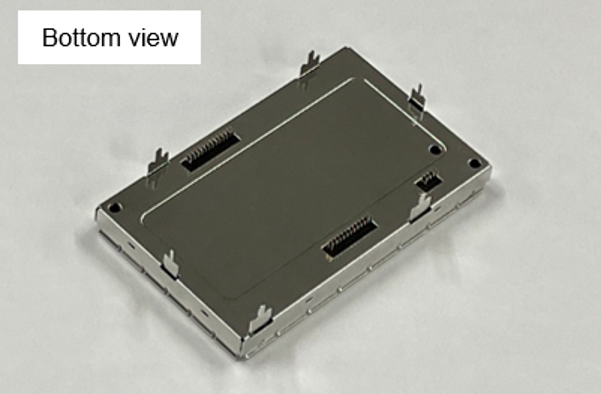

Feature
【Product Specifications】
- Dimensions : 91.4 mm × 56.4 mm
- Number of connector pins : 8pin, 24pin, 26pin
- Pin pitch : 1.27 mm
- Input supply voltage : 3.3 V, 1.8 V, 1.5 V, 1.125 V, 1.0 V (5 rails)
- Operating temperature range : -40 to 85°C
- RF antenna input
・Thrush : 2 antennas
・Thrush-High : 4 antennas
- External interfaces
・HDMI (video / audio output)
・UART (module control)
・Module RESET pin
・Module power enable pins ×2

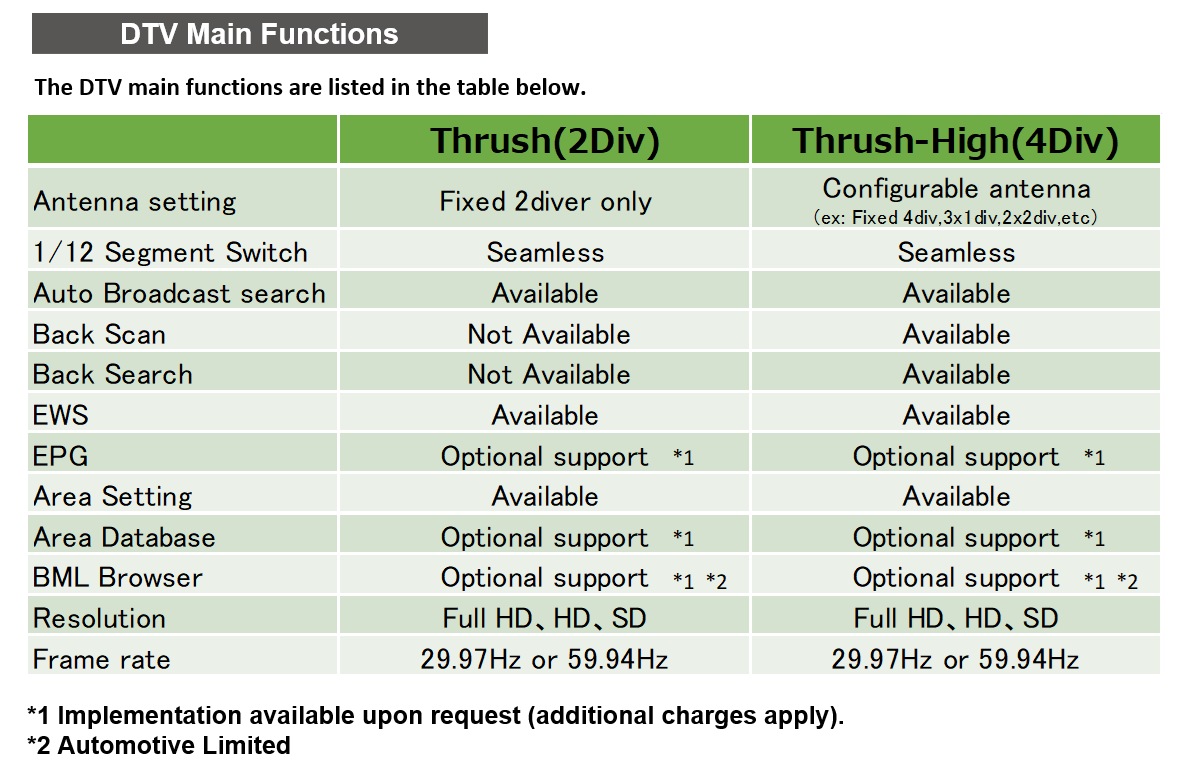

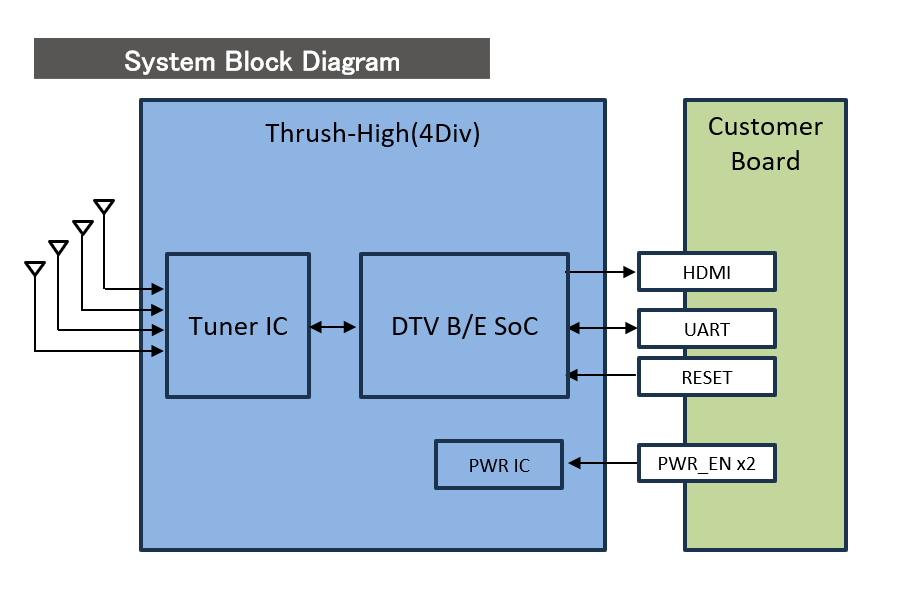

The table below provides an overview of the key functions incorporated in the digital terrestrial TV module, along with a sample system block diagram.
- Dimensions : 91.4 mm × 56.4 mm
- Number of connector pins : 8pin, 24pin, 26pin
- Pin pitch : 1.27 mm
- Input supply voltage : 3.3 V, 1.8 V, 1.5 V, 1.125 V, 1.0 V (5 rails)
- Operating temperature range : -40 to 85°C
- RF antenna input
・Thrush : 2 antennas
・Thrush-High : 4 antennas
- External interfaces
・HDMI (video / audio output)
・UART (module control)
・Module RESET pin
・Module power enable pins ×2
The table below provides an overview of the key functions incorporated in the digital terrestrial TV module, along with a sample system block diagram.
Product URL
https://www.oec.okaya.co.jp/solution/auto_sol/auto_product/complete-module-thrush/
Use・Results
【Applications】
By integrating into automotive IVI systems, digital TV functionality can be implemented.
The module includes DTV core functions and RMP (software CAS).
【Track Record】
Mass production has been adopted by domestic automotive OEMs and the product is currently in mass production.
By integrating into automotive IVI systems, digital TV functionality can be implemented.
The module includes DTV core functions and RMP (software CAS).
【Track Record】
Mass production has been adopted by domestic automotive OEMs and the product is currently in mass production.
Other
- Custom quotation available depending on quantity and specifications
- Support for system integration and product launch
- On-site demonstration available upon request
For system brock diagram and DTV main functions, please refer to the documentation.
Customization requests are also welcome.
- Support for system integration and product launch
- On-site demonstration available upon request
For system brock diagram and DTV main functions, please refer to the documentation.
Customization requests are also welcome.
