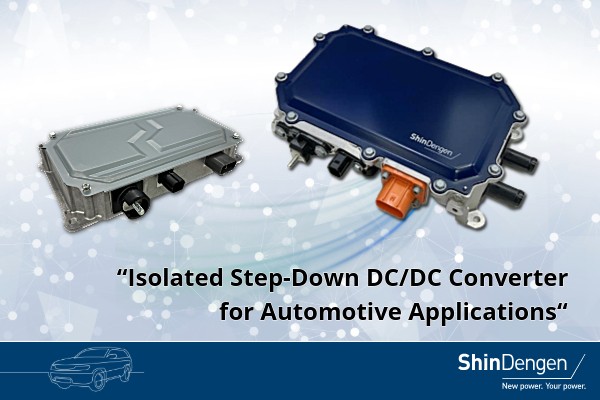

2kW＆1kW Output Power Isolated Step-Down DC/DC Converter for Automotive Applications
Outline
Since its founding in 1949, Shindengen Electric Manufacturing Co., Ltd. has been cultivating power supply technology. With the evolution of car electronics, the required vehicle load is increasing, while power supplies are required to be more compact and lightweight. To meet these demands, our company adopts low-loss soft switching circuits and high heat dissipation and thermal dispersion technologies. Additionally, by using DSP for full digital control, optimal power supply control and safety design are possible, and communication with higher-level ECUs is also realized.
This is an isolated DC/DC converter that converts the highvoltage DC battery of an electric vehicle into low-voltage DC and supplies power to the 12V power line for auxiliary equipment.
This is an isolated DC/DC converter that converts the highvoltage DC battery of an electric vehicle into low-voltage DC and supplies power to the 12V power line for auxiliary equipment.
Feature
【High Efficiency ＆ High Reliability】
・It combines core technologies such as in-vehicle mounting technology and power supply circuit technology, which havebeen studied over many years.
・High reliability is achieved byusing many in-house power semiconductors.
【Parallel Operation】
・Even if the vehicle load is added and the required current increases, it can be easily handled by parallel operation.
・Since each converter controls the voltage even in parallel, there is no need for additional control by the customer.

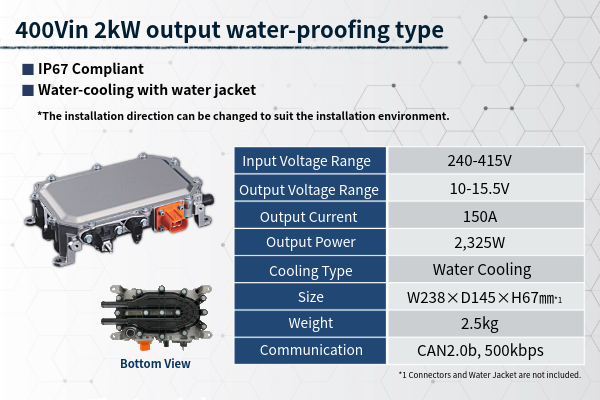

■ 400Vin 2kW Output Water-Proofing type
Vehicle-Mounted DC/DC Converter for Eco-Friendly Cars such as HEVs, PHEVs, EVs, and FCEVs.
【Feature】
1 IP67 Compliant
・It responds to the need for waterproofness, such as installation in mobility used outdoors.
・Since it is IP67 compliant, it can be installed without worrying about the installation location.
2 Water-cooling with water jacket
・The installation direction can be changed to suit the installation environment.
【Spec】
Input Voltage Range：240～415V
Output Voltage Range：10～15.5V
Output Current：150A
Output Power：2,325W
Cooling type：Water cooling with Water-Jacket
Size：W238×D145×H67mm (Connectors and Water Jaket are not included)
Weight：2.5kg
Communication:CAN2.0b,500kbps

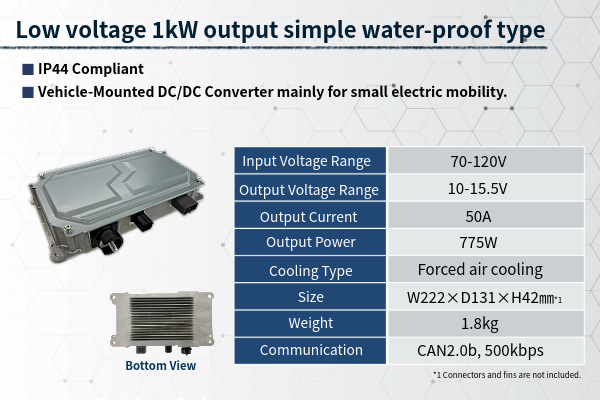

■ Low voltage 1kW output Simple water-proof type
Vehicle-Mounted DC/DC Converter mainly for small electric mobility.
【Feature】
1 IP44 Compliant.
・It has a certain degree of waterproofing, making it suitable for installation in mobility devices used outdoors.
【Spec】
Input Voltage Range:70～120V
Output Voltage Range：10～15.5V
Output Current：50A
Output Power：775W
Cooling Type：Forced air cooling
Size：W222×D131×H42mm (Connectors and fins are not included)
Weight:1.8kg
Communication:CAN2.0b,500kbps
・It combines core technologies such as in-vehicle mounting technology and power supply circuit technology, which havebeen studied over many years.
・High reliability is achieved byusing many in-house power semiconductors.
【Parallel Operation】
・Even if the vehicle load is added and the required current increases, it can be easily handled by parallel operation.
・Since each converter controls the voltage even in parallel, there is no need for additional control by the customer.
■ 400Vin 2kW Output Water-Proofing type
Vehicle-Mounted DC/DC Converter for Eco-Friendly Cars such as HEVs, PHEVs, EVs, and FCEVs.
【Feature】
1 IP67 Compliant
・It responds to the need for waterproofness, such as installation in mobility used outdoors.
・Since it is IP67 compliant, it can be installed without worrying about the installation location.
2 Water-cooling with water jacket
・The installation direction can be changed to suit the installation environment.
【Spec】
Input Voltage Range：240～415V
Output Voltage Range：10～15.5V
Output Current：150A
Output Power：2,325W
Cooling type：Water cooling with Water-Jacket
Size：W238×D145×H67mm (Connectors and Water Jaket are not included)
Weight：2.5kg
Communication:CAN2.0b,500kbps
■ Low voltage 1kW output Simple water-proof type
Vehicle-Mounted DC/DC Converter mainly for small electric mobility.
【Feature】
1 IP44 Compliant.
・It has a certain degree of waterproofing, making it suitable for installation in mobility devices used outdoors.
【Spec】
Input Voltage Range:70～120V
Output Voltage Range：10～15.5V
Output Current：50A
Output Power：775W
Cooling Type：Forced air cooling
Size：W222×D131×H42mm (Connectors and fins are not included)
Weight:1.8kg
Communication:CAN2.0b,500kbps
Product URL
https://www.shindengen.com/products/electro/automotive/hev/
Use・Results
～Introduction of Use Cases～

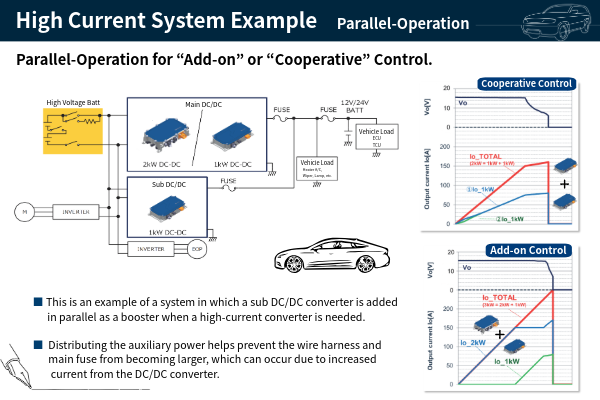

【High Current System Example】-Parallel-Operation-
With the increase in auxiliary power due to the evolution of car electronics and theevolution of autonomous driving technology, DC/DC converters with higher output are also required. By using DC/DC converters capable of parallel operation, we respond tothe growing demand for auxiliary power systems.
・This is an example of a system in which a sub DC/DC converter is added in parallel as abooster when a high-current converter is needed.
・Distributing the auxiliary power helps prevent the wire harness and main fuse frombecoming larger, which can occur due to increased current from the DC/DC converter.
■Output characteristics during parallel operation
This is the output current and voltage characteristic when 2kW and 1kW are combined and operated in parallel. It is possible to correct the output current value of the two converters so that they can be supplied in a balanced manner. Even if a vehicle load is added and the required current increases, if there is a DC/DC that can operate in parallel, it is possible to easily supply power from the sub DC/DC converter.

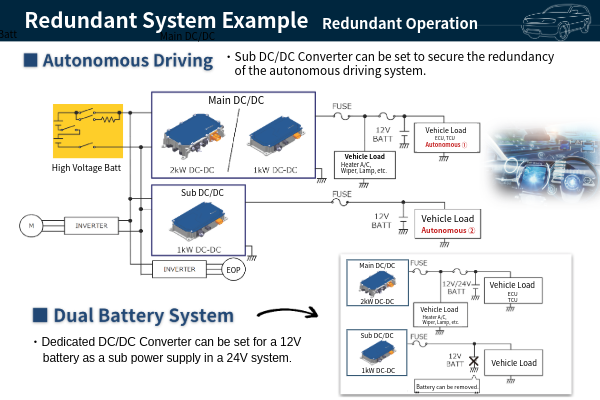

【Redundant System Example】 -Redundant Operation-
When configuring a fully redundant autonomous driving system, it is necessary to also make the auxiliary power supply redundant. By using DC/DC converters, we can meet the needs of various auxiliary power supply systems.
・Autonomous Driving
Sub DC/DC Converter can be set to secure the redundancy of the autonomous driving system.
・Dual Battery System
Dedicated DC/DC Converter can be set for a 12V battery as a sub power supply in a 24V system.
【High Current System Example】-Parallel-Operation-
With the increase in auxiliary power due to the evolution of car electronics and theevolution of autonomous driving technology, DC/DC converters with higher output are also required. By using DC/DC converters capable of parallel operation, we respond tothe growing demand for auxiliary power systems.
・This is an example of a system in which a sub DC/DC converter is added in parallel as abooster when a high-current converter is needed.
・Distributing the auxiliary power helps prevent the wire harness and main fuse frombecoming larger, which can occur due to increased current from the DC/DC converter.
■Output characteristics during parallel operation
This is the output current and voltage characteristic when 2kW and 1kW are combined and operated in parallel. It is possible to correct the output current value of the two converters so that they can be supplied in a balanced manner. Even if a vehicle load is added and the required current increases, if there is a DC/DC that can operate in parallel, it is possible to easily supply power from the sub DC/DC converter.
【Redundant System Example】 -Redundant Operation-
When configuring a fully redundant autonomous driving system, it is necessary to also make the auxiliary power supply redundant. By using DC/DC converters, we can meet the needs of various auxiliary power supply systems.
・Autonomous Driving
Sub DC/DC Converter can be set to secure the redundancy of the autonomous driving system.
・Dual Battery System
Dedicated DC/DC Converter can be set for a 12V battery as a sub power supply in a 24V system.
Other

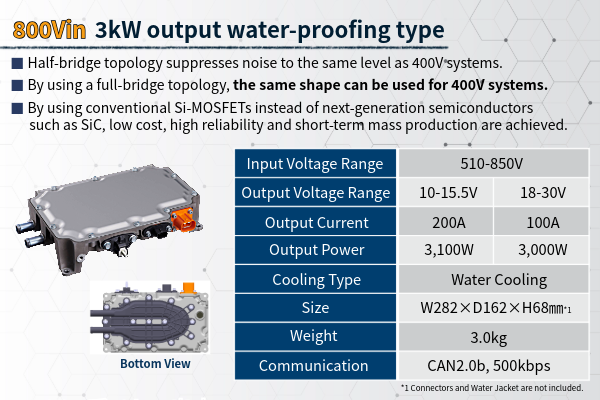

In addition to the applications introduced above, we also offer converters for high-voltage input (800Vin) models.
【Feature】
■ IP67 Compliant
■ Half-bridge topology suppresses noise to the same level as 400V systems.
■ By using a full-bridge topology, the same shape can be usedfor 400V systems.
■ By using conventional Si-MOSFETs instead of next-generation semiconductors such as SiC, low cost, high reliability and short-term mass production are achieved.
【800Vin Spec】*①Vout 12V ②Vout 24V
Input Voltage Range：500～850V
Output Voltage Range：①10～15.5V ②18～30V
Output Current：①200A ②100A
Output Power：①3,100W ②3,000W
Cooling Type：Water cooling with Water-Jaket
Size：W282×D162×H68mm (Connectors and Water Jacket are not included)
Weight：3,0kg
Communication：CAN2.0b,500kbps

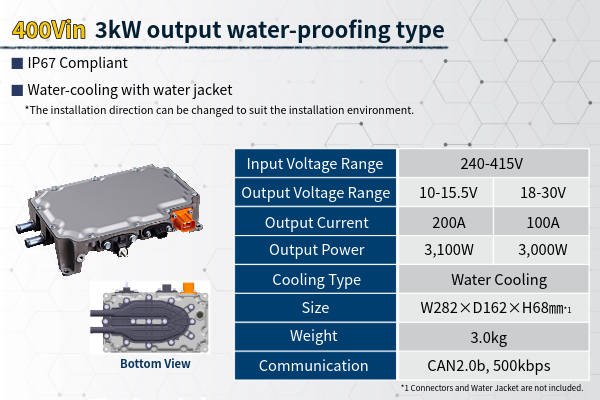

【400Vin Spec】*①Vout 12V ②Vout 24V
Input Voltage Range：240V～415V
Output Voltage Range：①10～15.5V ②18-30V
Output Current：①200A ②100V
Output Power：①3,100W ②3,000W
Cooling Type：Water cooling with Water-Jaket
Size：W282×D162×H68mm (Connectors and Water Jaket are not included)
Weight：3,0kg
Communication：CAN2.0b,500kbps
【Feature】
■ IP67 Compliant
■ Half-bridge topology suppresses noise to the same level as 400V systems.
■ By using a full-bridge topology, the same shape can be usedfor 400V systems.
■ By using conventional Si-MOSFETs instead of next-generation semiconductors such as SiC, low cost, high reliability and short-term mass production are achieved.
【800Vin Spec】*①Vout 12V ②Vout 24V
Input Voltage Range：500～850V
Output Voltage Range：①10～15.5V ②18～30V
Output Current：①200A ②100A
Output Power：①3,100W ②3,000W
Cooling Type：Water cooling with Water-Jaket
Size：W282×D162×H68mm (Connectors and Water Jacket are not included)
Weight：3,0kg
Communication：CAN2.0b,500kbps
【400Vin Spec】*①Vout 12V ②Vout 24V
Input Voltage Range：240V～415V
Output Voltage Range：①10～15.5V ②18-30V
Output Current：①200A ②100V
Output Power：①3,100W ②3,000W
Cooling Type：Water cooling with Water-Jaket
Size：W282×D162×H68mm (Connectors and Water Jaket are not included)
Weight：3,0kg
Communication：CAN2.0b,500kbps
